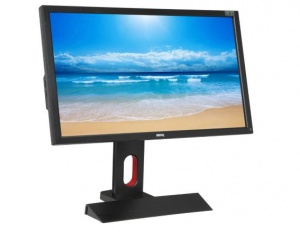

Benq XL2420Z
 Benq XL2420Z monitor |
|
| |
|---|---|
| Benq XL2420Z | |
| Screen Size (diagonal) | 24" |
| Aspect Ratio | 16:9 |
| Resolution (px) | 1920 * 1080 |
| Pixel Pitch (mm) | 0.276 |
| Brightness (cd/m2) [fn 1] | 350 |
| Contrast [fn 1] | 1000:1 |
| Panel Type | TN |
| Viewing Angle (horizontal/vertical) [fn 1] | 170°/160° |
| Vert. Refresh Rate (Hz) | up to 144 Hz |
| Response Time GtG (ms) [fn 1] | 1 |
| Display Colors | 16.7 mln |
| Color Gamut [fn 1] | 72% |
| Touch | No |
| Display Connections | D-Sub, DVI-DL, HDMI *2, DisplayPort |
| Other Connections | Headphone jack, USB 2.0 Hub |
Calibration
As with most TN panels, the XL2429Z does not have the best color representation out of the box. Our Benq XL2429Z lab monitors are individually color-calibrated using a Datacolor Spyder4 Elite colorimeter, based on a fixed hardware profile as specified below. This calibration is used to normalize the color representation of all lab monitors, which allows users to transfer their stimuli from one lab to the other with a minimized change in color perception. The color profile for each monitor will be automatically loaded or refreshed when a user logs into Windows, and will be periodically updated to provide the best possible representation of the ICC standard the monitor's display panel can deliver.
| Benq XL2420Z | |
|---|---|
| Hardware Settings | |
| Picture Mode | sRGB |
| Brightness | 31 (~200 lumen) |
| Contrast | 50 |
| Gamma | 5 |
| AMA | Off |
Motion blur reduction
By default the Benq XL2420Z is in 120 Hz mode. This means that the minimum time that a stimulus is shown is 8.3 ms. The monitor menu, reachable with the touch buttons on the right side of the monitor has a blur reduction setting. This changes the backlighting of the LCD screen in such a way that it is lighted only a quarter of the time. A stimulus present on the screen for one frame will now be visible for only 2ms.
This setting is useful when the participant is moving with respect to the screen or is watching a moving object on the screen. The perceived blur will be reduced with 75%.
See www.blurbusters.com for more information on (motion) blur.
Additionally the setting is useful when not only the onset (moment of appearing) but the moment the object is perceived is important. Do note that the latency of the onset does not change.
